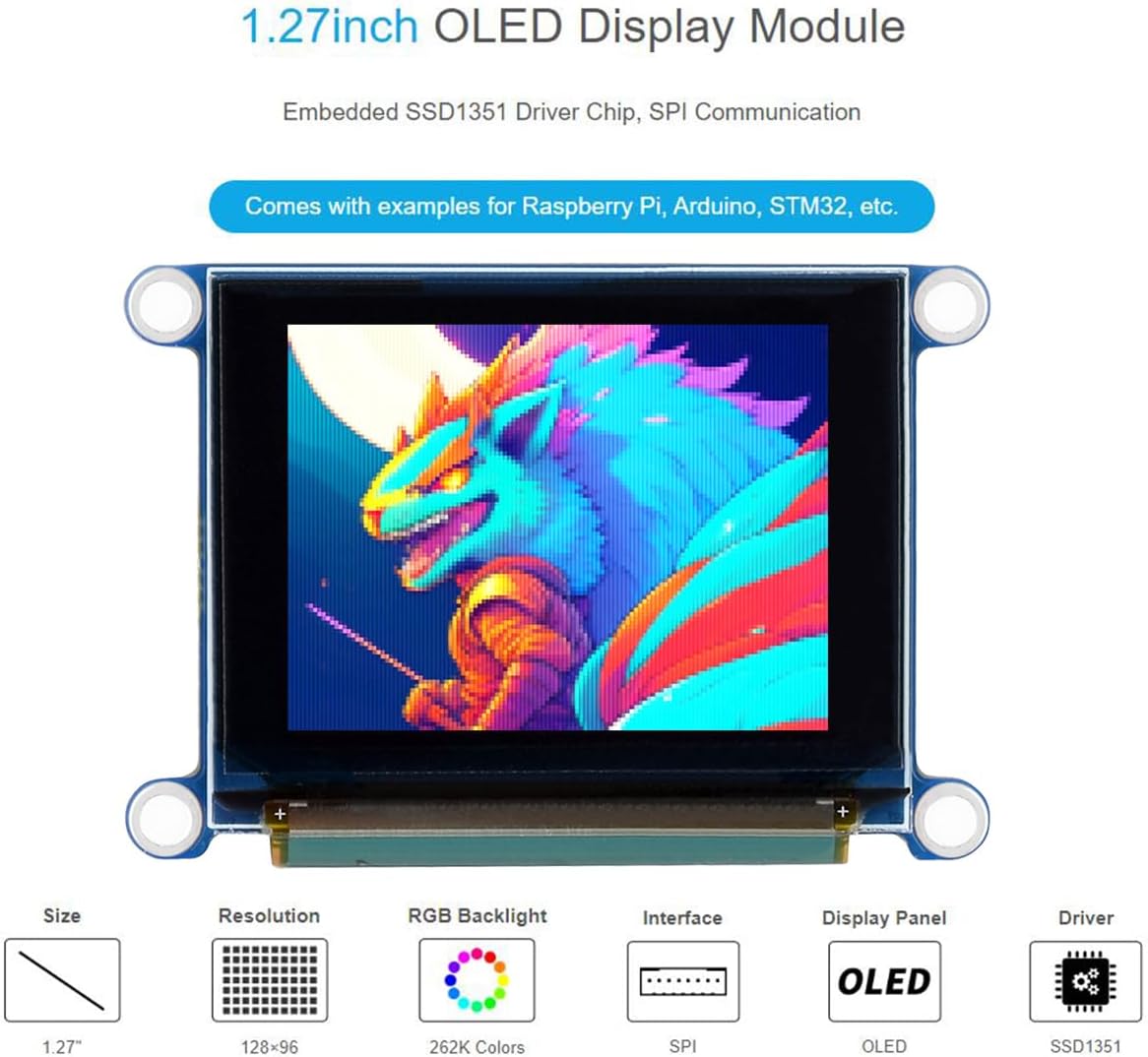

waveshare 1.27inch RGB OLED Display Module 128×96 Resolution Screen, 262K RGB Colors SPI Interface 3.3V / 5V Operating Voltage, for Ardu/Raspberry Pi/STM32
5.0 (36 items)
Limited Time Sale$14.45 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216993505 | Release Date | 2026/04/19 | List Price | $9.64 | Model Number | 216993505 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.27inch RGB OLED Display Module 128×96 Resolution Screen. Embedded SSD1351 driver chip, SPI Communication Features 128×96 resolution OLED display, 262K colors, clear and colorful displaying effect SPI interface, minimizes required IO pins Comes with online development resources (examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V / 5V Resolution: 128 × 96 pixels Communication Interface: 3/4-wire SPI Driver : SSD1351 DISPLAY PANEL: OLED Display size: 25.708 × 19.28mm PIXEL SIZE: 0.047 × 0.185mm Module size: 42.2 × 29.0mm OLED and its controller The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller. Pinout RES : Reset, low active DC: Data/Command selection (high for data, low for command) CS : Chip selection, low active CLK : Clock input DIN: Data input GND : Ground VCC: Power (3.3V / 5V input) How-to-use document/User Manual://bit.ly/43rUx9F Package Content 1.27inch RGB OLED Module x1 GH1.25 7PIN cable x1
- 128×96 resolution OLED display, 262K colors, clear and colorful displaying effect
- SPI interface, 4-wire SPI, 3-wire SPI, minimizes required IO pins
- Operating voltage: 3.3V / 5V. Embedded SSD1351 driver chip.
- Resolution: 128(H)RGB x 96(V). Dimension: 25.708 × 19.28mm.
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
| Brand | waveshare |
|---|---|
| Color | 1.27inch RGB OLED |
| Voltage | 5 Volts (DC) |
| Model Name | 1.27inch RGB OLED Display Module |
| Resolution | 128(H)RGB x 96(V) |
| Pixel Pitch | 0.0975 |
| Screen Size | 1.25 Inches |
| Aspect Ratio | 4:3 |
| Display Type | OLED |
| Manufacturer | Waveshare |
| Model Number | 1.27inch RGB OLED Display Module |
| Mounting Type | Wall Mount |
| Screen Finish | Glossy |
| Contrast Ratio | High |
| Processor Count | 1 |
| Has Color Screen | Yes |
| Native Resolution | 128 x 96 |
| Compatible Devices | Arduino, Raspberry Pi, STM32 |
| Display Technology | OLED |
| Hardware Connectivity | PC Card |
| Connectivity Technology | HDMI |
| Display Resolution Maximum | 128 x 96 |
