USB to Can Debugger Analyzer USBCAN II Industrial Grade High Speed Channel Debugger Support CAN Delay

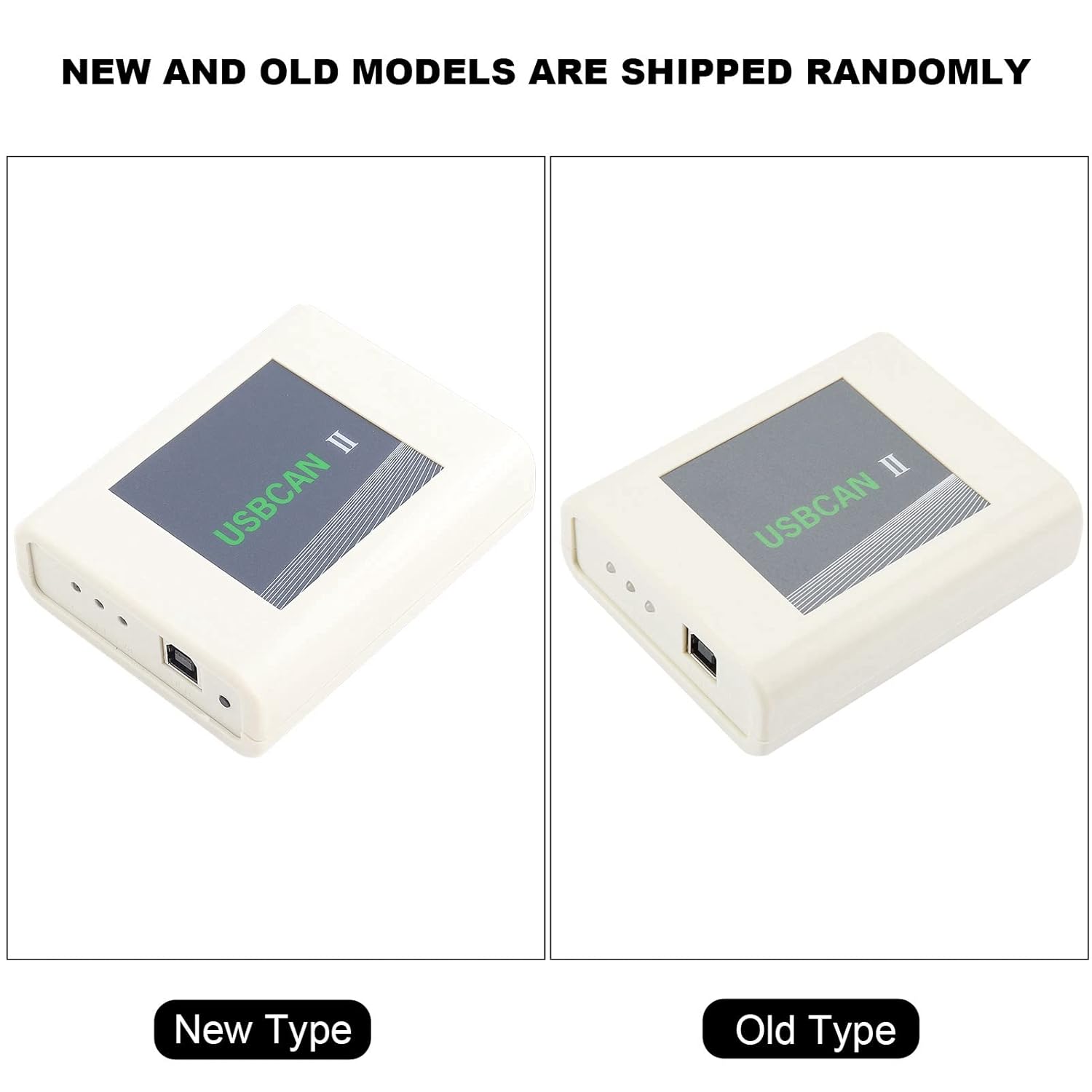

Specification:Condition: Brand NewModel: USBCAN IIProtocol Conversion Between USB and CAN CableUSB Interface Supports USB2.0, Compatible With USB1.1Support CAN2.0A and CAN2.0B Protocols, Support Standard Frames and Extended FramesSupports Two-Way CAN Channel Bidirectional , CAN , CAN ReceptionSupport Data Frame, Remote Frame FormatThe CAN Controller Baud Rate: 5Kbps and 1Mbps(optional), and the CAN Register Is Configured to Set the Special Baud Rate.Industrial Grade Magnetically Coupled Isolation Chip for CAN Transceiver With 2500V Isolation VoltageCAN Controller With 32 Hardware FIFO Receive Buffers, Single Channel Maximum Receive Capability Up To 14000 Frames / SecUSB Cable Directly PoweredSystem Running : for WinXP, for for for Working Temperature: -40 to 85℃Weight: Approx. 195g / 6.9ozSize: Approx. 98 x 78 x 30mm / 3.9 x 3.1 x 1.2in Package List:1 x Channel II USBCAN Debugger2 x CAN Adapter Plates1 x USB CableNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• [HIGH SPEED CHANNEL DEBUGGER] - Double way USBCAN II Debugger with 2 Road CAN interface, PC can be connected to a standard CAN network through the USB bus, for industrial control, intelligent building, data processing, and automotive electronics.
• [STANDARD CAN BUS TOOL] - Can be used as a standard CAN bus for product development, testing, and data analysis. Small volume and convenient installation make it ideal for portable users.
• [CAN BUS CONFIGURATION] - Directly configure, send, and receive CAN bus using USBCAN tools provided in our shop. DLL dynamic link library is also available for writing custom applications.
• [INDUSTRIAL GRADE DESIGN] - Designed with industrial grade components including DCDC power module, magnetic isolation chip CAN bus isolation, and strong anti-jamming capability for reliable performance in harsh environments.
• [COMPATIBLE AND HIGH PERFORMANCE] - Compatible with universal USBCAN devices. Single channel has a maximum reception capacity of 14000 frames per second, while channel supports reception capacity of 8500 frames per second.
