Scooter 36V 500W Motor Speed Controller Ignition Key Switch Keylock for Electric Go Kart E Bike Razor Pit Dirt Trail Bike ATV UTV Drift Trike Golf Cart Quad Buggy Dune 4 Wheeler (w/Throttle Grips)
4.1 (120 items)
Limited Time Sale$29.72 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216411324 | Release Date | 2026/04/19 | List Price | $19.81 | Model Number | 216411324 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
36V 500W Brushed Motor Speed Controller: This 36 volt controller has 8 connectors Rated Voltage: 36 Volts Rated Motor: 500 Watts Rated Current: 27±1A Conversion Efficency: 95% Under Voltage Protection: 31.5±0.5V Dimensions: 92*66*38mm/ 3.62*2.6* 1.5 Inch Plug : 1.Red & Black (large cable) : Battery connections 2.Yellow & Blue : Motor connections 3.Red & Blue : Key Switch(power lock) (If there is no power door locks,red connection to blue) 4.Yellow & black : brake 5.Red & Yellow: Brake light 6.Red&Black(small cable) : indicator light 7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle ) (Red:+5v,Black: - ,Blue :Signal Wire) 8.Red & Black (small cable): Charger Ignition Key Switch Condition: Brand New Color: black Material: metal, plastic 2 Position Switch: ON/OFF 2 Wires With Famale Plugs Comes With 2 Keys Cable length: 32gmm/ 12.79 inch OD: 25mm/ 0.98 inch Twist Throttle Grips: Style: Striae and Round Condition: 100% brand new Color: black Material: metal and rubber Size: 22mm (0.87 inch) / 25mm (0.98 inch) 7/8 Length: 135mm/ 5.31" Weight: 220g/ 0.49 lbs Operating voltage: 5V Adjustment range: Minimum 1.0V; highest 4.0V Function: high, medium and low grades governor This set fits for: Universal for Electric Scooter Go Kart ATV UTV Drift Trike Golf Cart Quad Buggy Dune Moped Lawn Mower Four Wheeler Tricycle Fits most Chinese made electric go carts Package Includes: 1 x DC 36V 500W Brushed Electric Motor Speed Controller 1 x Ignition Key Switch A Pair Motorcycle Hand Grips
- ✅Versatile Applications: Universal for Electric Scooter Go Kart E Bike Razor Pit Dirt Bike Pocket Rocket Monkey Trail Bike ATV UTV Drift Trike Golf Cart Quad Buggy Dune Moped Four Wheeler Tricycle Mobility Offroad Motorcycle Chopper
- ✅High PerformanceMotor Speed Controller: 36V 500W brush motor controller, perfect for enhancing the power and efficiency of your electric scooter or bike; Rated voltage of 36 volts and rated current of 27±1A for stable and efficient power delivery; Boasts a conversion efficiency of 95%, maximizing the performance of your electric vehicle
- ✅2 position switch: ON/OFF for convenience; Easy installation with 2 wire female plugs; Includes 2 keys for immediate use
- ✅22mm Hand Grips: Operating on 12v, 24v, 36v, and 48v systems; Operating voltage of 5V with an adjustment range from a minimum of 1.0V to a maximum of 4.0V; Equipped with high, medium, and low-grade governor functions for optimal control and performance

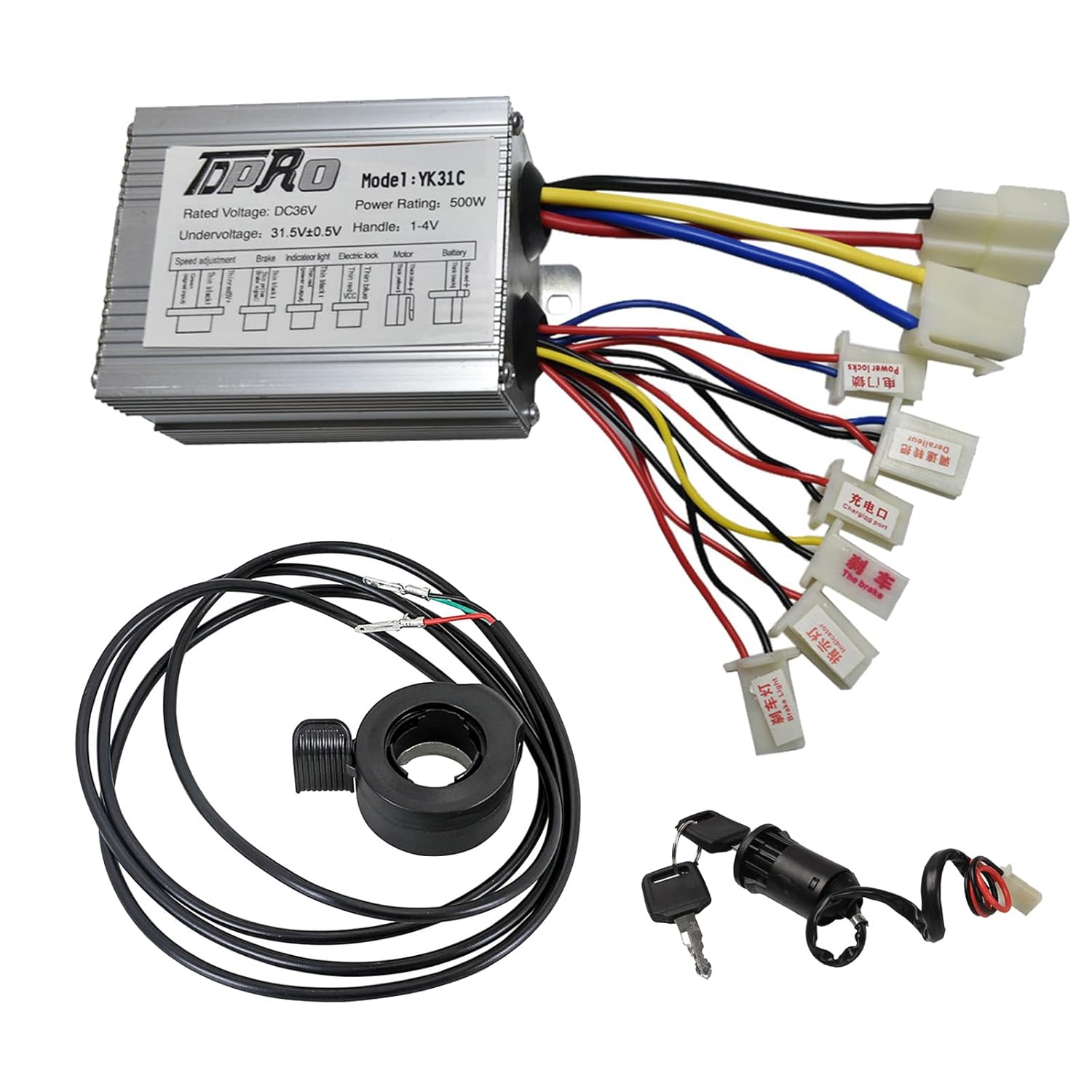

- ✅Package Includes: 1 x DC 36V 500W Brushed Electric Motor Speed Controller; 1 x Ignition Key Switch; A Pair Motorcycle Hand Grips
| Color | w/ Throttle Grips |
|---|---|
| Model | DC 36V 500W Motor Speed Controller |
| Wattage | 500 watts |
| Brand Name | SUISUITONG |
| Contact Type | Normally Open |
| Manufacturer | suisuitong |
| Material Type | Metal |
| Connector Type | Plug In |
| Current Rating | 37 Amps |
| Operation Mode | ON-OFF |
| Number of Items | 3 |
| Operating Voltage | 36 Volts |
| Included Components | 1x controller, 1x ignition key switch, 1x posersport handlebar hand grips |
