Ql25A-16 Motorcycle Rectifier Bridge Rectifier 25A 1600V Diode Bridge Stack Module

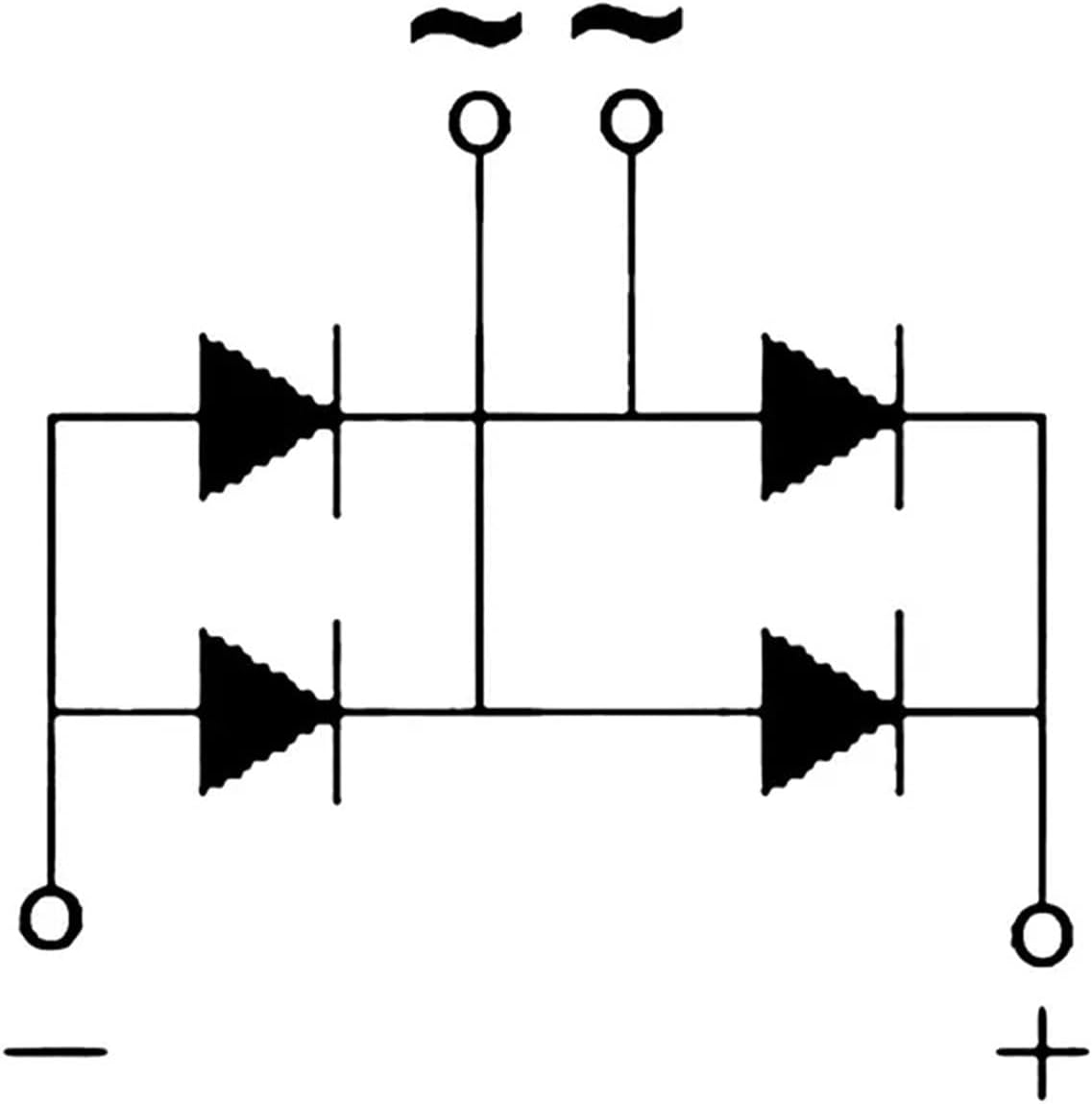

DiodesProduct DescriptionSingle Phase Diode Bridge Rectifier QL25-16 is a bridge rectifier circuit of four diodes that is used in theprocess of converting alternating current.Output direct current ID-25 ampere,repetitive peak reverse voltage VRRM-1600VAn alternating curent is fed to the input "~"of the circuit.In each of the half-periods the input curent passes only throughtwo diodes.As a result,at the output"+"and"-"we get a current pulsing at twice the frequency of the input current.Features of Single Phase Diode Bridges QL25A 1600V:low on-state losses;high reverse voltage and high current handlingcapabilities,easy chassis mounting;high surge current.Their main applications are:rectifier for power supplies;inputrectifier for variable frequency drives;rectifier for motor field supplies;battery charger rectifiers.Single Phase Diode Bridges have the following features:industry standard housing,;low static anddynamic losses,high values of VRRMVRSM,extensive experience of using the devices in various industries.Product ParametersDiode Bridge specifications QL2516 Direct output current lp 25 A Max.repetitive peak reverse blocking voltage VRRM 1600V Maximum allowable average forward current IFAV 12.5 A Surge peak forward current IFSM 175 A Maximum repetitive peak reverse current lRRM 5 mA RMS isolation voltage VisoL 2500V Thermal resistance,junction tocase Rthj-c) 5.0 CM Temperature of p-njunction Tvjmax 125 ºC ==========Hign-concerned Chemical : NoneDimensions : 60*32*25mmMean On-State Current : 12.5AModel Number : Ql25A-16Type : Bridge RectifierEncapsulation Structure : Plastic Sealed Transistorname (of a thing) : Single-phase rectifier bridgeVoltage : 1600VCurrent : 25ANumber of phases : 1 phase
