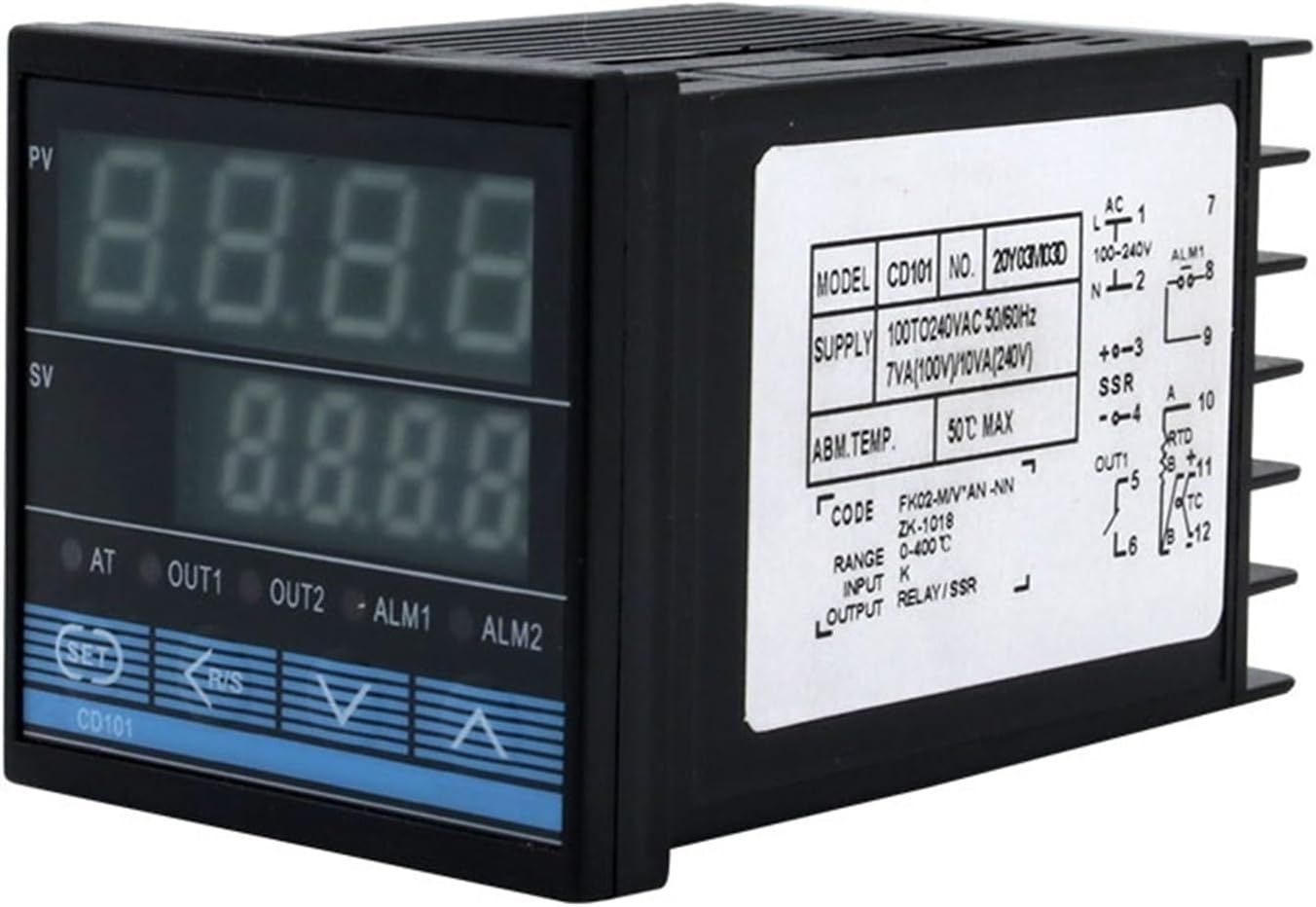

PID Temperature Controller Output SSR Relay with RS485 PID Regulator TC/RTD Input 48x48mm RKC Industrial Intelligent CD101(SSR Relay Opt 2ALM)

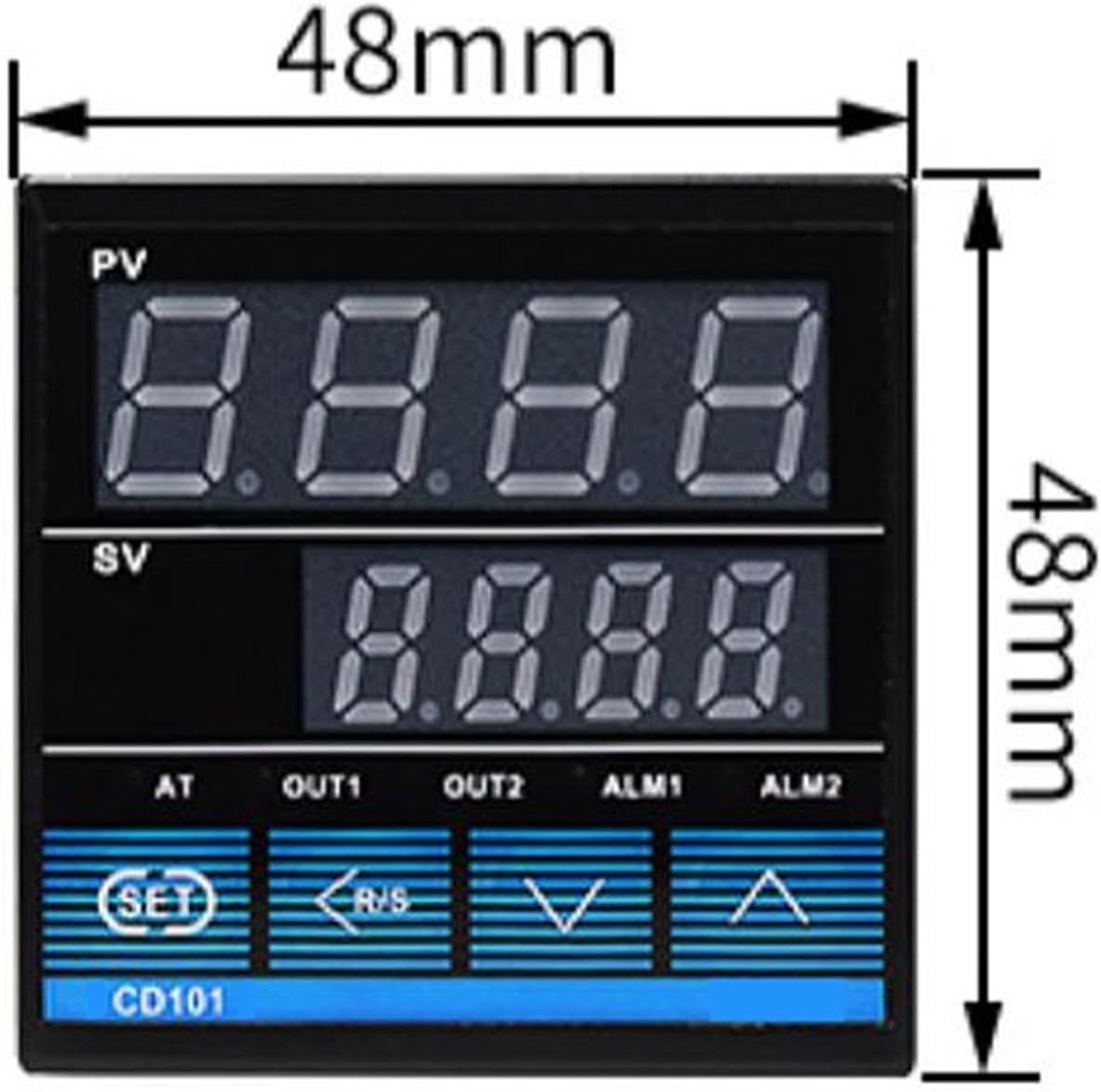

Temperature ControllersMain Features1.Multi type signals input.2.PID control,error correction.3.Auto-Tuning.4.Multiple alarm modes.5.Optional positive-Negative of PID.6.Parameter lock to avoid improper operation.7.Used for industrial machinery,machine tools,measuring instruments.RKC CD series Temperature ControllerPower supply:85~265VAC 50~60Hz or 24VDCPanel size:CD101 48x48mmCD401 48x96mmCD701 72x72mmCD501 96x48mmCD901 96x96mmControl method:PID Control (with auto-tuning) or Self-tuning, or ON/OFFSampling period:0.5sInput type:TC,RTD(K,J,E,T,S,PT100,Cu100,Cu50,It can switch in menu)Output type:SSR,Relay,0-10v,4-20mAAlarm:Max 2 alarmsSuch as upper limit alarm, lower limit alarm, upper and lower limit alarm, upper deviation alarm, lower deviation alarm, interval alarm, interval alarm (user can set)Accuracy:±0.5F.S<;85%==========Hign-concerned Chemical : NoneMeasure Type : KTheory : Temperature ControllerDisplay Type : DIGITALPower Type : ChargerCertification : Model Number : CD101Display Size : 1.9 Inches & UnderMax Measuring Temperature : 49°C & UnderStyle : EmbeddedUsage : IndustrialPower : 85-265VACInput : TC/RTDTC/RTD : 48x48
