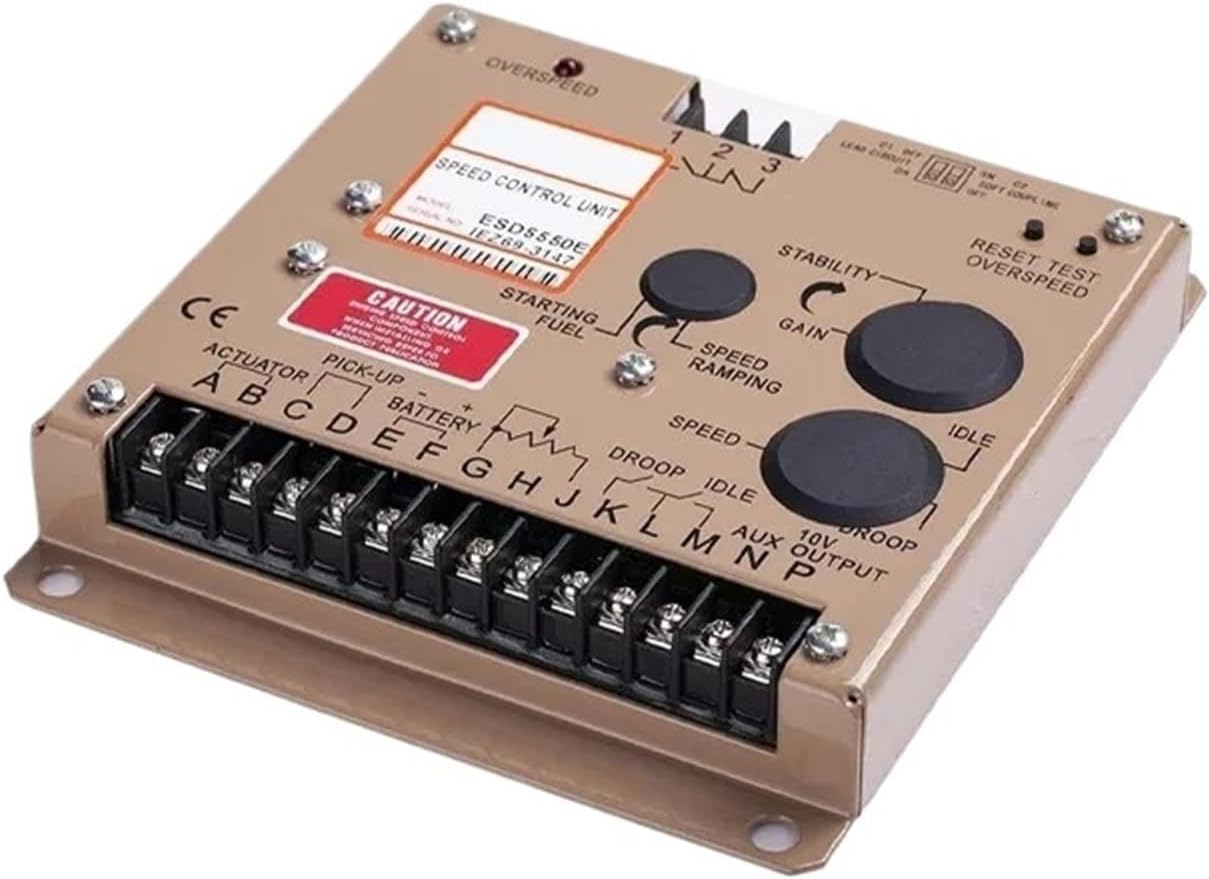

ESD5550 Electronic Governor Generator Set Speed Control Board Speed Controller

Control PanelsESD5550 Electronic Governor Generator Set Speed Control Board Speed ControllerExact generic replacement for ESD5550The ESD5550 Speed Control Unit is an all electronic device designed to control engine seed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.Simplicity of installation and adjustment was foremost in the design. Non-interacting performance controls allow near optimum response to be easily obtained.The primary features of the Speed Control Unit ESD5550 are the engine STARTING FUEL and SPEED RAMPING adjustment. The use of these features will minimize engine exhaust smoke experienced prior to attaining engine operating speed.Other features include adjustable droop and idle operation, inputs for accessories used in multi-engine or special applications, protection against reverse battery voltage, transient voltages, accidental short circuit of the actuator and fail safe design in the event of loss of speed sensor or battery provide.The ESD5550 Speed Control Unit is compatible with all proportional actuators except the ACB2000 electric actuator. When the ESD5550 Speed Governor is used with a ADC100 Series electric actuator, the DROOP adjustment range will be less due to this actuator's low current demand.
