DC 12V Electronic Load Tester, Load Battery Capacity Tester Module, 0-10A 100W Constant Current Discharge Monitor for Power Bank Capacity Testing

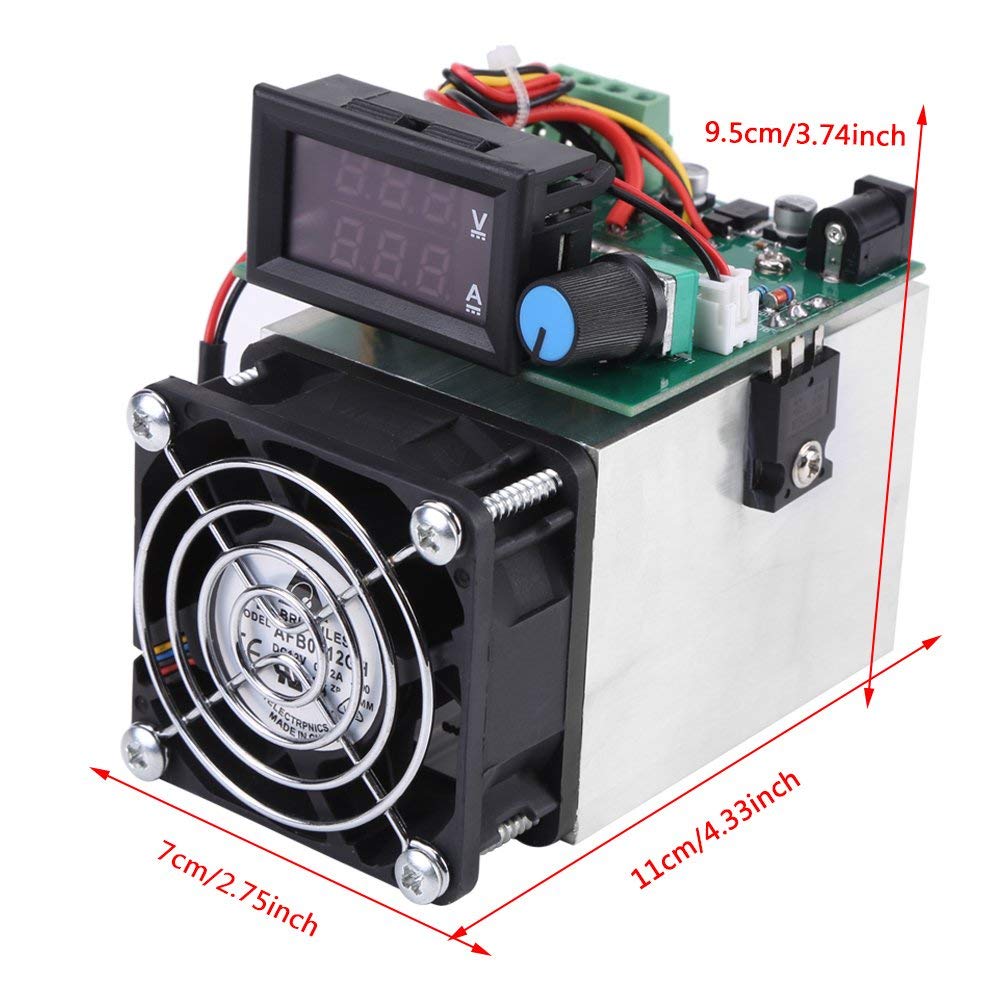

Description: This Electronic Load has the high speed fan, which can automatically change the speed. heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity. Features: The high speed of the fan can change according to the heat sink temperature. of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity. Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time. construction for long-lasting performance. Professional test module for detecting discharge battery capacity. Specification: Power Supply: DC12V±5% Fan Current: 0.72A Constant Discharge Current Range: 0-10A(whole machine) Working Mode: Single Mode Constant Current(CC) Discharge Current . Error: 0.7%-0.01A . Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and 1.2% . Power: 100W Input Interface: 5.5 x 2.5mm Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch Weight: 385g Package List: 1 x Electronic Load Instructions: 1. Turn on the 12V power supply to enter the electronic load mode, ensure that in the stop state (knob anti-clockwise minimum) connect the measured power to the test input power port pay attention to the polarity do not connect the wrong!2. Set the constant current through the knob!Note: Because it is open work so there is no internal voltage limit and power limit, but the normal work should be below 100V, below 100W work!

• MULTI-USAGE: The current electric discharge tester has a widely use during daily life, and it is a professional test module for detecting discharge battery capacity, you can use it to test different items
• INTELLIGENT DESIGN: The battery capacity tester equipped with industrial large tooth heat sink, which is dust- and heat dissipating. At the same time the high speed of the fan can change according to the heat sink temperature,which can effective prevent module from damaging, and provide a long term service for you
• TO USE: The electronic load tester features with various of functions to provide a safety use, it has the of of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity, no worry about emergency issues happened
• MAXIMUM POWER: The current electric discharge monitor features 100W large power to provide a constant and stable use, can bring you more convenience
• : This DC load battery tester is made of material to ensure a long term service, and it's construction could also provide a better and long-lasting performance
