AI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 / BLE, Rich Human-Machine Interfaces, Supports AI Speech Interaction
4.3 (63 items)
Limited Time Sale$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217004181 | Release Date | 2026/04/19 | List Price | $9.60 | Model Number | 217004181 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

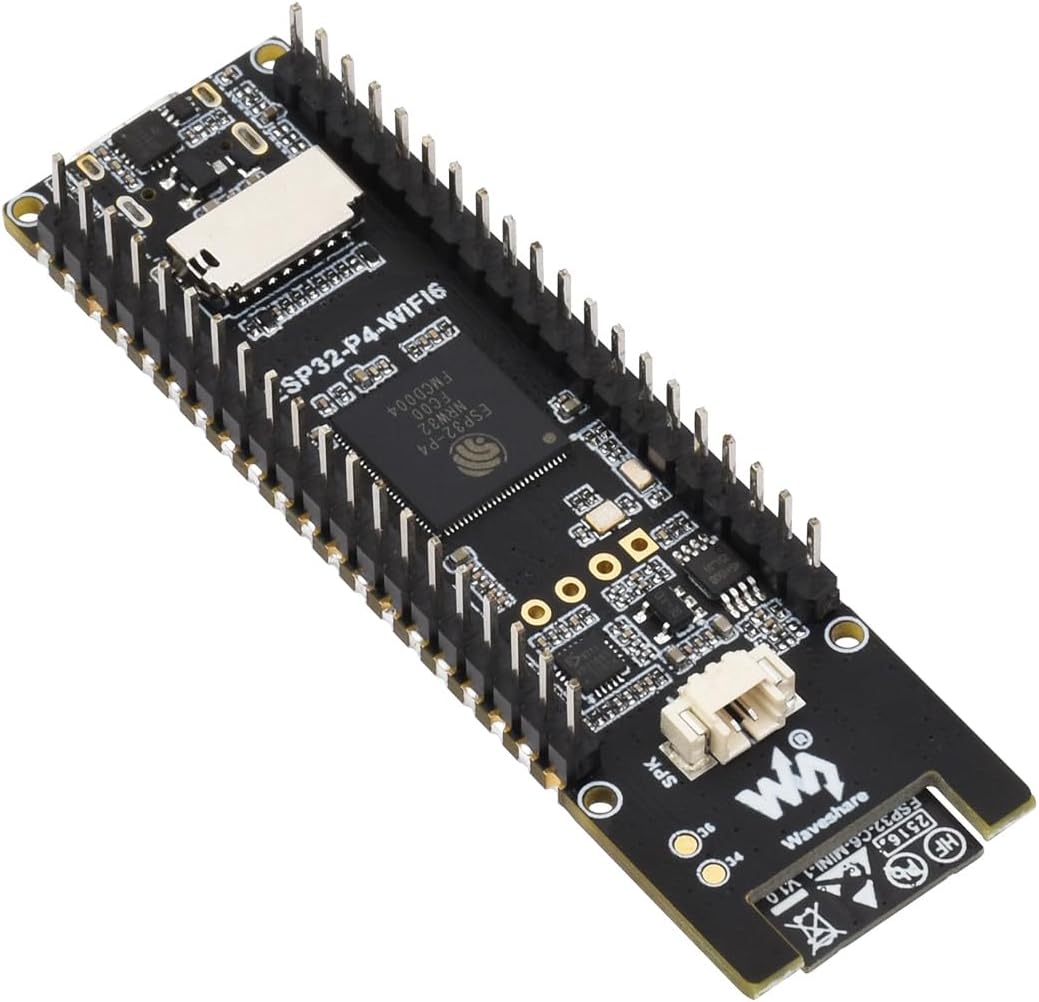

- ESP32-P4-WIFI6 is a multimedia development board, based on ESP32-P4 with integrated ESP32-C6, and supports Wi-Fi 6 and BLE 5 wireless connections. It provides a rich set of human-machine interaction interfaces, additionally, it supports USB OTG 2.0 HS, and has a built-in 40PIN GPIO expansion interface on board that is compatible with Raspberry Pi HAT expansion boards, enabling a wider range of application adaptability.
- Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, ChatGPT, Doubao, etc. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. The ESP32-P4-WIFI6 is specially designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and IO expansion.
- Processor: High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors. Equipped with RISC-V 32-bit single-core processor (LP system). Equipped with ESP32-C6 WIFI/BT co-processor, expand WIFI 6/Bluetooth 5(BLE) and other functions through SDIO.
- Memory: 128 KB of high-performance (HP) system read-only memory (ROM). 16 KB of low-power (LP) system read-only memory (ROM). 768 KB of high-performance (HP) L2 memory (L2MEM). 32 KB of low-power (LP) SRAM. 8 KB of system tightly coupled memory (TCM). 32 MB PSRAM is stacked in the package, and the QSPI port is connected to 32MB Nor Flash.
- Peripheral Interfaces: 2 x 20 header pins onboard, 27 remaining programmable GPIOs, supporting a variety of peripheral devices. Onboard USB 2.0 OTG port, SDIO3.0 TF card slot, Type-C UART flashing port, convenient for different scenarios. Onboard speaker port, microphone, Codec chip and power amplifier chip can be used to achieve the ideal audio function requirements.
- Onboard MIPI-CSI high-definition camera port, support full HD 1080P picture acquisition and encoding, integrated image signal processor (ISP) and H264 video encoder, support H.264 & JPEG video encoding (1080P @30fps), easy to apply to computer vision, machine vision and other fields.
- Onboard MIPI-DSI high-definition screen display port, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P @30fps), providing strong support for high-definition screen display and smooth HMI experience, convenient for application to smart home central control screen, industrial central control screen, vending machine and other scenarios.
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/he67d4
| Brand | Wonrabai |
|---|---|
| Manufacturer | Wonrabai |
| Model Number | ESP32-P4-WIFI6-M |
| BuiltIn Media | ESP32-P4-WIFI6 with pre-soldered header x1 |
| Mfr Part Number | ESP32-P4-WIFI6-M |
| Processor Count | 3 |
| Total Usb Ports | 1 |
| Warranty Description | Any questions, please let us know. |
| Memory Storage Capacity | 32 MB |
