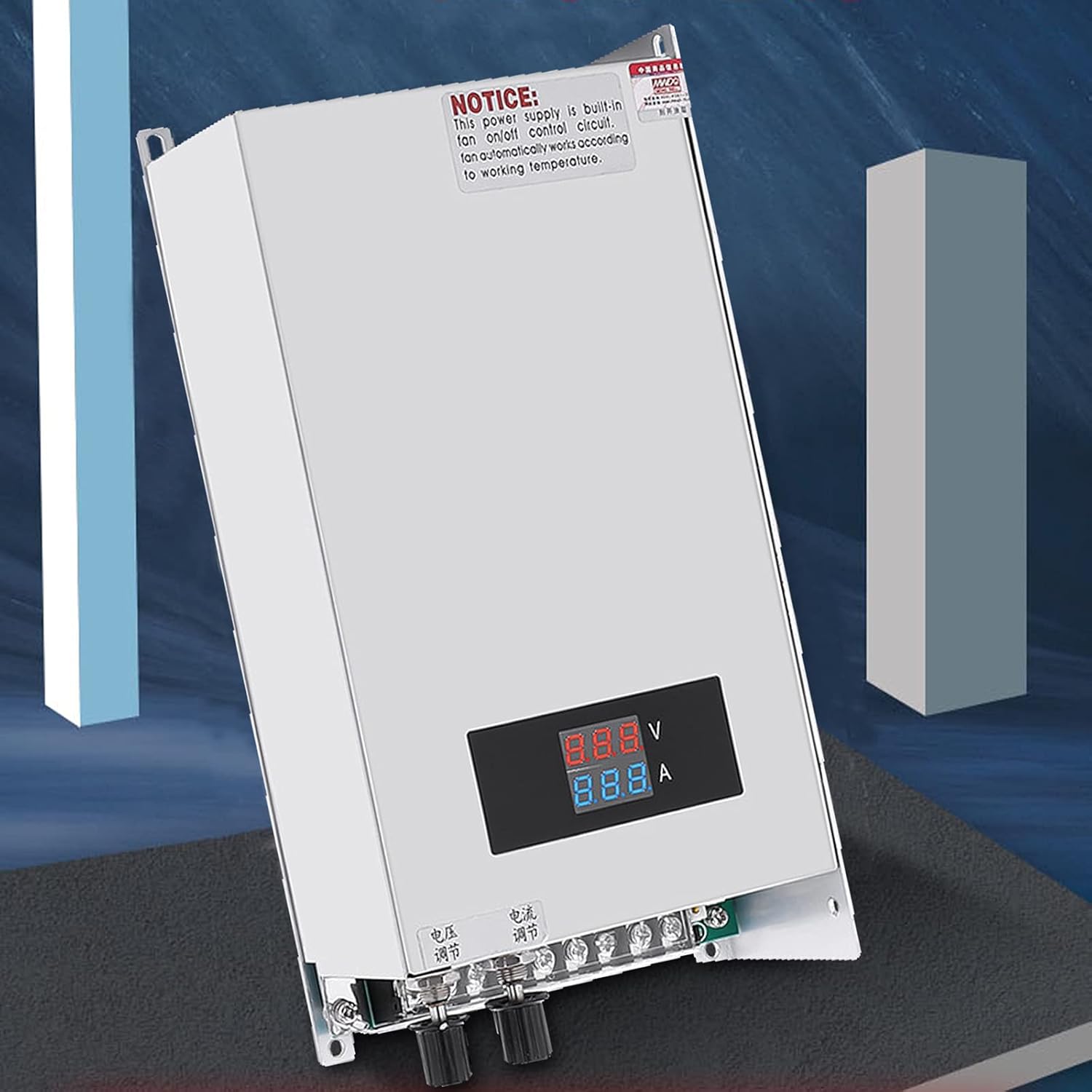

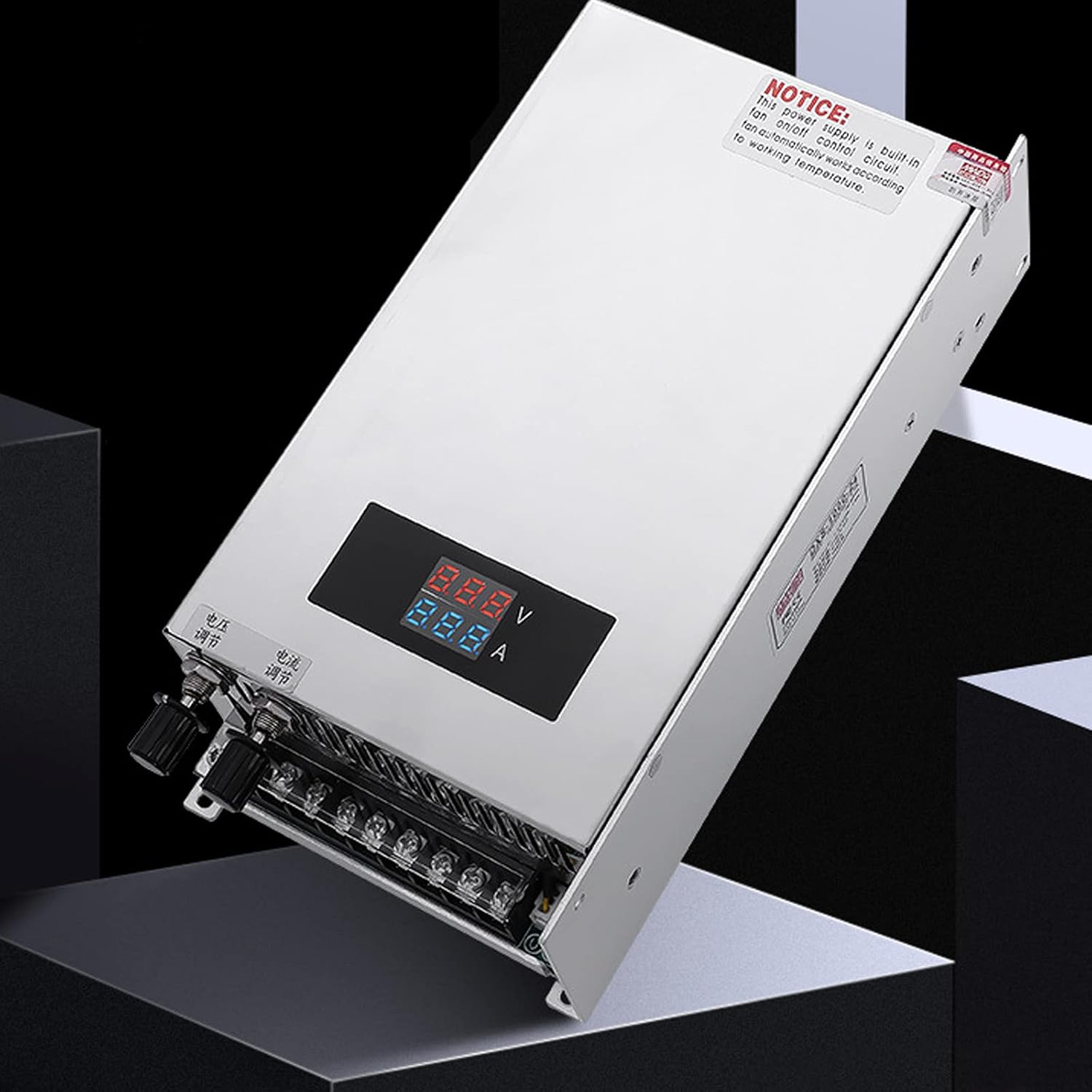

Adjustable Switch Power Supply, DC 0-48V 1000W 20A Adjustable LED Adapter, 1000W Transformer Converter

Description Are you still looking for a reliable adjustable switch power supply? Our product has a power of 1000W and can provide a stable DC power supply for electronic equipment. It also has multiple protection functions to ensure a stable and safe power supply. Don't hesitate to come and make a purchase for a more stable and reliable power supply experience! Application It is widely used in industrial automation, broadcasting, LED display screens, communication, security cameras, lighting, computers, and other fields. Specification Color: Silver Shape: Rectangular Material: Iron Process: Polishing Outdoor/Indoor Use: Indoor Mount Type: Vertical Hanging Installation Power Supply: Corded Display: LED Input Voltage: AC110V, 10.8A, 50Hz/60Hz Output Voltage: DC48V, 20A Max. Output Current: 20A Rated Power: 1000W Adjustable Output Voltage Range: 0-48V Adjustable Output Current Range: 0-20A Ripple Voltage: ≤ 250mV Voltage Stabilized Equivalent Internal Resistance: ≤ 0.5Ω Overload: 105%~150% of Rated Output Power Working Environment Temperature: -10~+50℃/14~122℉ Working Humidity: 20~65%RH, Non-condensing Storage Temperature and Humidity: -10~+60℃/14~140℉, 10~95%RH Hole Distance: 18.8cm/7.4in Product Size: 24.1*12.5*6.5cm/9.49*4.92*2.56in Package Size: 25*14*8cm/9.84*5.51*3.15in Gross Weight: 1.65kg/3.64 lbs Net Weight: 1.57kg/3.46 lbs Package Included 1* Adjustable Switch Power Supply Notes 1.Please check if the wiring is correct again before powering on. 2.Please note that this product is not recommended for full-load use. 3.The input voltage should be connected within the specified working voltage range and correctly grounded. It is not waterproof, indoor use only! 4.It is strictly prohibited to use in high-temperature environments, and the power supply should have good heat dissipation space and environment. 5.It is strictly prohibited to install the power supply on flammable materials(e.g. wood products, flammable plastics, etc.), and it should be kept away from gas stations or places where fireworks are prohibited. 6.Due to overload protection, intermittent on/off situations may occur. At this time, the load should be reduced. 7.The power supply should be securely and vertically suspended for installation. 8.Please note that when using inductive loads such as motors and fans, please pay attention to the starting current parameters of the motor. This parameter should not be higher than the current used by the power supply, otherwise it may cause damage to the power supply. A higher current power supply should be selected, or the motor should be equipped with a soft start protection circuit to absorb the impact current. 9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

• 【EXCELLENT PERFORMANCE】: The 1000W high power and advanced chip make it highly efficient and low-power, allowing for faster voltage conversion. Additionally, it is designed with a high-precision multi-turn potentiometer for high adjustment accuracy.
• 【SAFETY GUARD】: This product is equipped with short-circuit protection, overheating protection, overload protection, current limiting protection, and automatic recovery function, which can promptly cut off the power in case of accidents, ensuring your safe use.
• 【GOOD HEAT DISSIPATION】: The large cooling holes that work in conjunction with the built-in fan can better dissipate heat and extend the life of the product.
• 【USER-FRIENDLY】: The LED screen can display real-time voltage and current, and the convenient knobs allow you to adjust the voltage and current according to your needs. The wide range of voltage (0-48V) and current (0-20A) adjustment can adapt to the needs of various application scenarios.
• 【PORTABLE DESIGN】: The small size(9.49*4.92*2.56in) and lightweight(3.46 lbs) make it easy to store and not take up too much space, so you can easily carry it to the workplace you need.
