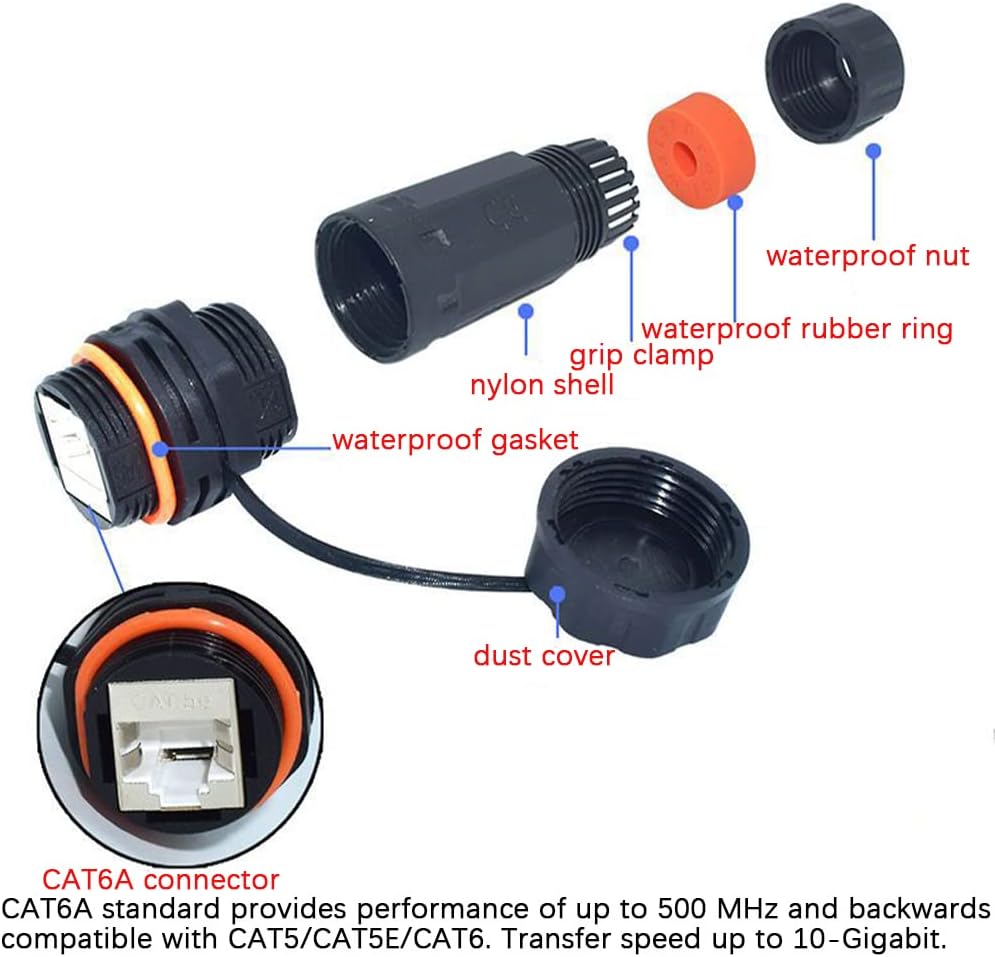

5PCS Shielded RJ45 CAT6A Waterproof Panel Mount Connector IP68 Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Female to Female Outdoor Network Adapter

The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6/6A patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Specifications: INGRESS PROTECTION: IP68（Waterproof and dustproof） Thread: M23 Color: Black, Blue Number of cores: 8 PIN Connection type: RJ45 Flame retardant rating: UL94V-0 Connection method: plug type + thread pressure lock Connector wire-in range: OD (4.5～7.5) mm Connector transmission classification: CAT5, CAT5E, CAT6, CAT6A Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds Electrical parameters: Rated current: 1.5A Rated voltage: 125VAC, 75VDC Insulation resistance: ＞500MΩ Compressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance: ＜10MΩ Material: Shell: nylon plus fiber (UL94V-0) Socket contact pin: 0.5mm diameter phosphor copper wire Contact pin gold plating thickness: 6u inch Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40～120Celsius Storage temperature: -25～85Celsius Atmospheric pressure: 86～106kPa Relative humidity: ≤90% RH Package Included: 5x M23-CAT6A Shielded Waterproof RJ45 Connector
